Automatic bags palletizer PMA-1800/50
Automatic bags palletizer PMA-1800/50
Automatic bags palletizer PMA-1800/50
Automatic bags palletizer PMA-1800/50

The palletizer is  automatic machine allows to stack various items on  wood, plastic or metal. The machine can be used with different types of grips, it depends on the shape and size of used container. More...
Send an enquiry

Description

Technical parameters

Video

The palletizer is  automatic machine allows to stack various items on  wood, plastic or metal. The machine can be used with different types of grips, it depends on the shape and size of used container.

Automated palletizer is fully controlled by a powerful industrial controller. During the process of stacking the machine scan more than a dozen of light and magnetic sensors. To configure the palletizer, an operator sets the initial coordinates on operator panel for stacking of the objects(bags, boxes, crates)  and the machine selects optimal parameters based on  dimensions and weight of  stacked product.

The robot palletizer operates in four coordinates and during reprogramming allows you to switch to various ways of stacking pallets. During the packing of valve bags, it is important to use  stacking method, in which valves of  bags placed on the pallet are facing inside the pallet,  that  not only eliminates  dusting of  the product while further transportation, but also ensures cleanliness and esthetic appearance of  packed pallet.

The frame of  the automatic palletizer is made for specific tasks and the machine can be used both as for stacking  of one pallet and as alternate stacking of two pallets.

The palletizer transforms into  a fully-featured line for group packing, using the pallet feeding module and pallet packer (pallet wrapper).

Advantages:

  • powerful precision guides for accurate operation and long service life;
  • 4 powerful  servomotors provide fast and precise positioning of the product on pallet;
  • gripper’s drive mechanism of stacked items is made to order taking into  account  the requirements to the stacking product;
  • system of sensors and encoders provides tracking  the working mechanisms of the robot at a frequency of 12.000 Hz and provides accurate stacking product on the coordinates;
  • using the touch screen on the control panel, an operator can pre-set and correct  operating modes of the machine.

Control cabinet consists of:

  • controller;
  • operator panel;
  • automatic protection devices;
  • start-control devices;
  • light signaling equipment.

Standard component parts:

  • palletizer;
  • control cabinet;
  • software.

Optionally made:

  • cassette for pallets for 15 pieces;
  • conveyor for feeding of the product for stacking;
  • conveyor for feeding of pallets;
  • base plate stacking module.

Palletizer with two conveyors and manual pallet feeding:

scheme791_2-1_400scheme791_2-2_400

Palletizer with rear bag feeding and manual pallet feeding:


scheme792_13-1_400scheme792_13-2_400

Palletizer with rear right bag feeding and automatic pallet feeding:

scheme793_23-1_400scheme793_23-2_400

Palletizer with left-hand bag feeding and automatic pallet feeding:


scheme794_22-1_400scheme794_22-2_400

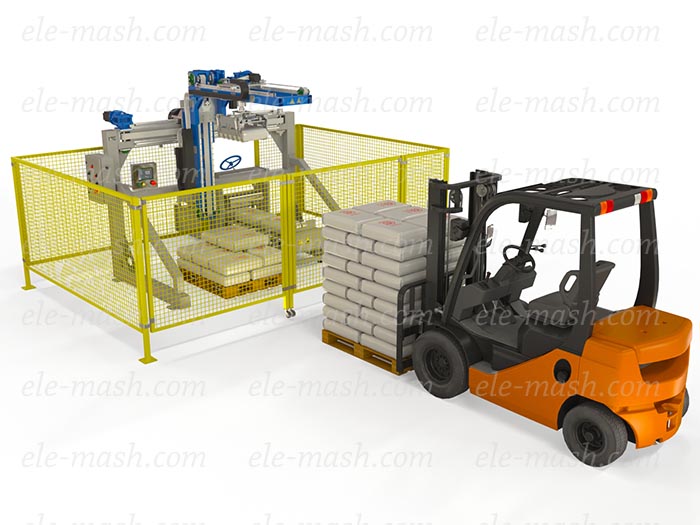

Palletizer with left-hand bag feeding and manual pallet feeding:

scheme795_11-1_400scheme795_11-2_400

Palletizer with right-hand bag feeding and manual pallet feeding:

scheme796_12-1_400scheme795_12-2_400

Bags packing and palletizing line

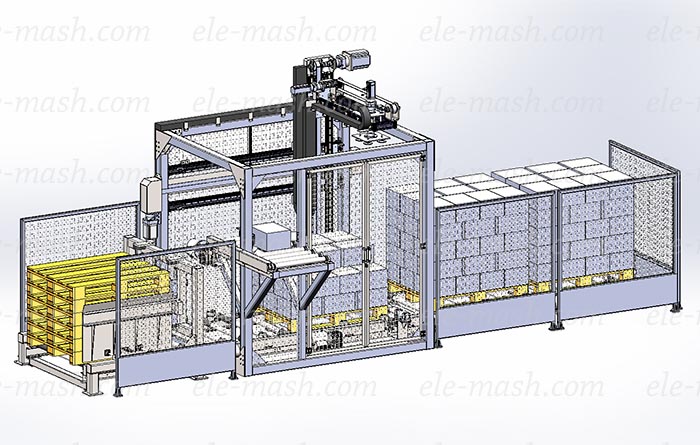

Boxes palletizing line


Information is for reference only. For more details please contact our sales managers.


Technical characteristics and operating description:
  • Number of grips - 1 piece
  • Number of stacking pallets - 1(2)
  • Pallet size: 800x1200mm; 1000x1200mm
  • The maximum stacking speed - up to 6 items per minute
  • Maximum carrying capacity - 25(50)kg
  • Maximum carrying capacity of the grip - 65kg
  • Maximum stacking height - 1800 mm
  • Rotation angle of the head  - 360°
  • Installed capacity - up to 14 kw
  • Protection class - IP54
  • Electric power supply - 3ph, 380V + N, 50 Hz
  • Dimensions - to be specified after ordering.

Technical parameters are for reference only. For more details please contact our sales managers.
