Blade mixers SP
Blade mixers (SP serie) are designated for mixing food and chemically active products by blade mixing. They are mainly used for mixing of heavy, heavy-mixing and clotting products. More...
Price: please ask
Availability: equipment is made to order
Description
Technical parameters
Video
Blade mixers (SP serie) are designated for mixing food and chemically active products by blade mixing. They are mainly used for mixing of heavy, heavy-mixing and clotting products.

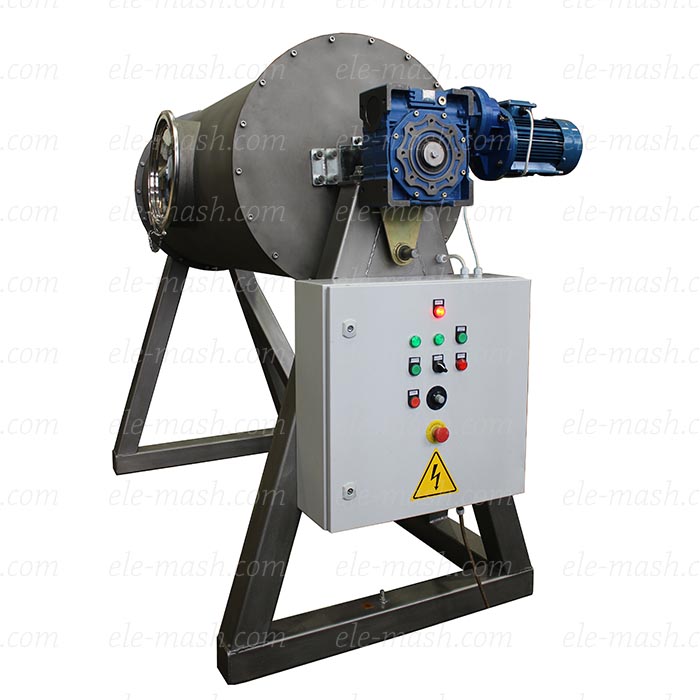

The construction of the paddle mixer consists of the frame, the tip-over drum with dividing blades, the cover, the drive and the control panels of the mixing and overturning processes.
The blades of the paddle mixer are made of the thick stainless steel sheet as standard and alternate left and right turns. Dividers can be mounted at the ends. It is possible to alternate the blades with powerful spirals directed to the center, additionally moving the product along the walls of the mixing machine.
The mixer body is able to rotate 350 ° around it’s axis. Using this function the operator expands the neck of the barrel to the loading or unloading position with a given angle.
It can be fully manufactured from stainless steel.
Rigid frame construction and the lack of manual work during mixing and unloading makes this mixer the most suitable for labor-intensive processes of mixing heavy products.
Information is for reference only. For more details please contact our sales managers.
Blade mixer specifications
| Model | SP 40 | SP 80 | SP 140 | SP 250 | SP 600 |
| Drum volume, litres | 40 | 80 | 140 | 250 | 600 |
| Loading volume(max), litres | No more 40% of the total volume | ||||
| Container rotation speed, rpm | 6,4 | 5,2 | 4,5 | 3 | 2 |
| Stirrer rotation speed, rpm | Up to 70 | 30 | |||
| Power supply voltage, V/Hz | 3-phases 380V 50Hz | ||||
| Protection class | IP 54 (standard) | ||||
| Power input, kW | 0,12/0,75 | 0,25/1,5 | 0,12/2,2 | 0,37/3 | 1,1/4 |
| Turn-over system | Sensor system for “load-unload” | ||||
| Weight, kg | 98 | 120 | 201 | 320 | 520 |
| Length / width / height, mm | 775x 1100x 1360 | 1020x 1100x 1440 | 1575x 1400x 1560 | 2060x 1000x 1500 | 2435x1235x 2000 |
Technical parameters are for reference only. For more details please contact our sales managers.
