Multiline packaging machine DELTA-10/6
Multiline packaging machine DELTA-10/6 is used for packaging products into single-use bags (tea, medicinal herbs, sugar, coffee, cream, shampoos, preparations for insect control, etc.) at large enterprises or flow-line productions. More...
Description
Technical parameters
Video
Multiline packaging machine DELTA-10/6is used for sachet packaging (from 6 to 14 lines without photo tag). It is mainly used for packaging products into single-use bags (tea, medicinal herbs, sugar, coffee, cream, shampoos, preparations for insect control, etc.) at large enterprises or flow-line productions. The machine is characterized for high performance and reliability. Pneumatic, mechanical and electrical circuit elements are assembled from leading European companies and ISO certified.
Standard configuration

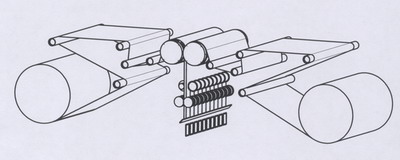

- Packaging material winding system.
- Set of drive rollers
- Forming system “rolls”
- Weigher
- Horizontal and vertical cutting system.
- Bag calculation system
- Discharge conveyor
The machine is equipped with multifunctional control system “HITACHI” that performs the following functions: stepless speed control, work in the mode “PHOTO-TAG” or “BAG LENGTH”, bag counting (since installation, for a shift, in a box), phase control, extended control for all drives and heating elements and pressure in pneumatic system, packaging material ending, product level in weighing hopper, short circuit protection and leakage current control (personal electrical shock protection).
Packaging material:
- Laminated paper, paper-aluminum-polyethylene, laminate, etc.
- Packaging material width to 520 mm
- Sleeve diameter 75 mm
- Bobbin outer diameter to 450 mm
Additional options
- Dust extraction system
- Antistatic system
Information is for reference only. For more details please contact our sales managers.
| Model | DELTA-10/6 |
| Machine drive | mechanical and pneumatic |
| Operating mode | continuous |
| Nominal capacity | depends on the product type, it’s quantity and packaging material |
| Weigher type | volume, screw or piston |
| Power supply voltage | 380 V / 50 Hz |
| Protection class | IP 10 |
| Installed capacity | nominal 2,5 kW, maximum 5,2 kW |
| Pneumatic power supply (according to GOST 17433) | 0,6 mPa, under the 8 contamination class |
| Air consumption | to 20 liters |
| Overall dimensions (L x W x H) | 1400x1520x2100 |
| Weight | no more than 980 kg |
| Number of lines | Bag length, mm | Bag width, mm | Maximum capacity (bags/min) |
| 6 | 97 | 83 | 600 |
| 7 | 97 or 78 | 71 | 700 |
| 8 | 78 or 65 | 62 | 800 |
| 9 | 78 or 65 | 55 | 900 |
| 10 | 65 | 50 | 1000 |
| 11 | 65 | 45 | 1100 |
| 12 | 65 | 41 | 1200 |
| 13 | 65 | 38 | 1300 |
| 14 | 65 | 35 | 1400 |
Technical parameters are for reference only. For more details please contact our sales managers.
